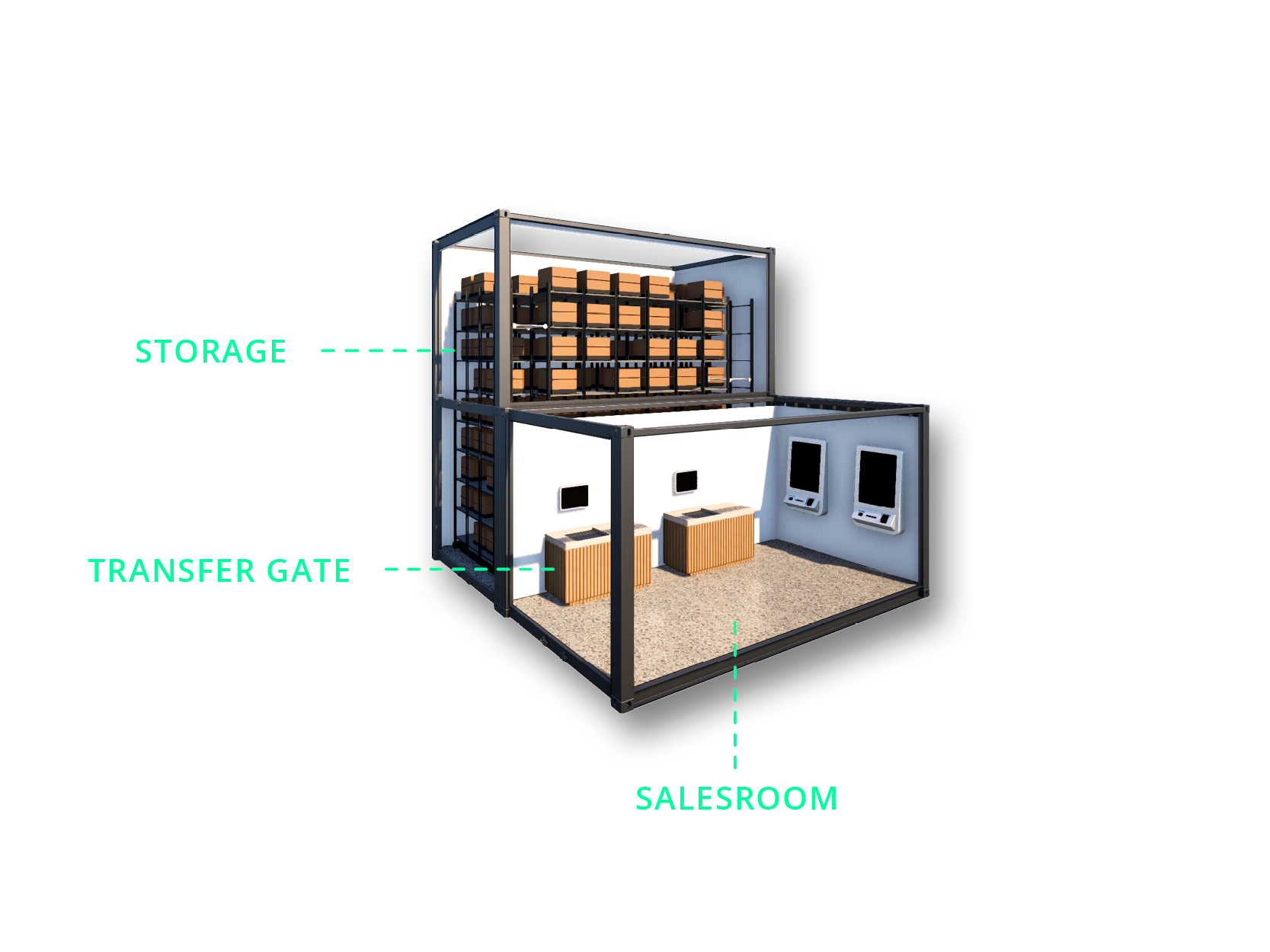

CLUSTORE

FULLY AUTOMATED VENDING SYSTEM
FOR DECENTRALIZED STORES

BACKGROUND
.

The clustore project is the first concrete application of MorgenWerk’s basic technology, which implements dynamic logistics in three-dimensional space. Cloud-supported swarms of extremely inexpensive shuttles constantly carry all items and drive to the customer immediately after the order has been placed. The project is supported by the Invest BW innovation program of the state of Baden-Württemberg.

Icon-Einsatzfaelle3-200x200

USE CASES

  • mom-and-pop-store” for local supply, especially in rural areas
    .
  • „Farmers store“ for the direct marketing of agricultural businesses
    .
  • petrol station, drugstore, discount store etc.
    .
  • automated outlet with connection to production facilities and/or large warehouses
icons-eigenschaften-1-200x200

CHARACTERISTICS

  • modularly scalable in all three dimensions
    .
  • variable performance in terms of access times and customer frequency
    .
  • suitable for installation in existing buildings, even with amorphous room layouts
    .
  • can be expanded into a stand-alone building with integrated wall and roof modules
    .
  • almost unlimited range of products – any shape, rigid or flexible, variable size and
    weight classes, variable climate zones possible
Icon-Einsatzfaelle4-200x200

FUNCTIONS

  • customers can order at terminals on site
    or through a mobile smartphone app
    .
  • payment process on site by smartphone or
    debit card, or digitally with app ordering
    .
  • extremely fast provision of the paid
    of the paid products in delivery gates

INNOVATION & USP

.
A fundamentally new concept

Autonomous shuttles carry and transport the available
articles in constantly positioned goods carriers.
They park and move freely on multi-storey levels that can be
levels, which are linked by lifts that can be integrated as required.
Our software enables dense block storage with
simultaneous access to each individual stand.

The fully comprehensive IoT system controls all warehouse,
picking and transfer processes automatically.

The shuttles with the ordered items move immediately
to the delivery gates after ordering and
enable fast access times.

The consistent small-cell modularity allows any space
any room layout.

.

.

Other Highlights

  • The development project is largely supported by
    the Baden-Württemberg Innovation Program and
    from the point of view of the evaluation committee
    “[…] very good in terms
    of content.”

    .
  • extensive patents have been registered
    .
  • The initiator and CEO Jörg Rauschenberger
    has a wide range of entrepreneurial and
    production engineering experience. You can find more
    at www.modus1.de

.

.
New business model – pay per use

The universal modular principle enables the
MorgenWerk modules can be stocked by the manufacturer or
at the manufacturer or at affiliated service providers.

Operators can use them to configure complete systems.
In the event of changes in demand in terms of capacity or performance
the number of modules can be flexibly adjusted at any time.

Morgenwerk acts directly or via service partners as a
full-service provider. It offers the hosting of
modules with cloud-supported preventive maintenance
and repairs, as well as installation and dismantling.

.

.

Almost unlimited expansion of the application

Linking of different fields

Clustore systems can be linked to large
lanes with storage areas or production facilities.

Decentralized sales systems can be integrated directly into residential complexes and also combined with transfer stations for delivery services of all kinds.

Industrial use

e.g. demand-oriented overhead supply from central warehouses
warehouses to assembly lines and production lines

.
